Pleated filter elements - Specification: table 10-12



Pleated Filter Elements Series:

  • Filter Element Model: PF-D/L-R
  • PF-Pleated Filter Elements
  • D-Diameter
  • L-Length
  • R-Filter Rating

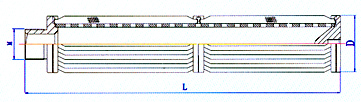

Model L(mm) D(mm) M Filter Area R(µm) Filter Media
PF-60/400-R 400 60 M33x1.5P
M33x2P 		0.40M2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber web; stainless steel weaving wire cloth
PF-60/500-R 500 0.50M2
PF-60/1000-R 1000 1.00M2

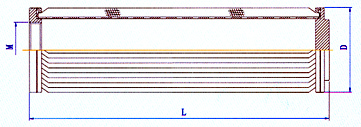

Model L(mm) D(mm) M Filter Area R(µm) Filter Media
PF-62/1195-R 1195 62 M36x2 0.60M2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber web; stainless steel weaving wire cloth
PF-62/1395-R 1395 0.70M2

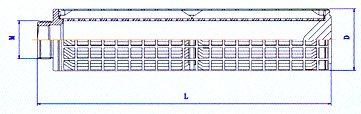

Model L(mm) D(mm) M Filter Area R(µm) Filter Media
PF-55/1245-R 1245 55 M33x2P 0.91M2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber web; stainless steel weaving wire cloth
PF-55/1247-R 1247 0.91M2
PF-55/1347-R 1347 0.95M2
PF-55/1350-R 1350 0.95M2
