Pleated filter elements - Specification: table 7-9



Pleated Filter Elements Series:

  • Filter Element Model: PF-D/L-R
  • PF-Pleated Filter Elements
  • D-Diameter
  • L-Length
  • R-Filter Rating

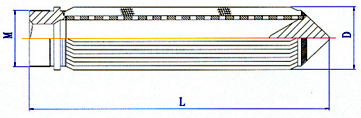

Model L(mm) D(mm) M Filter Area R(µm) Filter Media
PF-45/200-R 20 45 1.25"-
12UNF
2"-
12UN		 0.21M2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber web; stainless steel weaving wire cloth
PF-45/800-R 800 0.45M2
PF-57/1023-R 1023 57 0.90M2

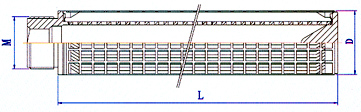

Model L(mm) D(mm) M Filter Area R(µm) Filter Media
PF-46/965-R 965 46 1.25"-12UN 0.52M2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber web; stainless steel weaving wire cloth
PF-50/1020-R 1020 50 M42x2P 0.62M2
PF-60/1020-R 1020 60 M52x2P 0.80M2
PF-60/1210-R 1210 1.00M2

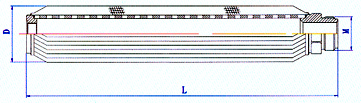

Model L(mm) D(mm) M Filter Area R(µm) Filter Media
PF-50/275-R 275 50 M30x1.5 0.18M2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber web; stainless steel weaving wire cloth
PF-50/525-R 525 0.33M2
PF-50/870-R 870 0.54M2
PF-50/1395-R 1395 0.80M2
