Cylindrical filter elements - Filter media



Filter Media: Filter medium for Cylindrical Filter ELements is Five-Layer Sintered Wire Cloth, filter rating ranging from 0.5micron to 200micron.

Five-Layer Sintered Wire Cloth consists of fiver layers of stainless steel wire mesh, which are sintered together in vacuum. Cylindrical Filter Elements made of Five-Layer Sintered Wire Cloth as filter medium, boast of fine micron filtering, good permeability, high strength, easy to clean, good corrosion resistance, durable at work and no immigration of materials.

Main Technical Index of Sintered Metal Wire Cloth

Nominal rating (µm) Absolute rating
98%(µm) 		Porosity
(%) 		Resistance coeffient Bubble point pressure
(mmH2O)		 Tensile strength (kgf/mm2) Thickness
(mm) 		Weight
(kg/m2)
2 8-9 5-LAYERS
38

6-LAYERS
48 		14x105 280-640
5-LAYERS
12

6-LAYERS
7
5-LAYERS
1.7

6-LAYERS
3.5
5-LAYERS
8.4

6-LAYERS
14.4
5 12-14 12x105 250-600
10 16-18 7x105 220-550
20 28-32 4x105 180-450
40 58-63 4x105 150-400
75   2x105 70-130
100   2x105 60-110

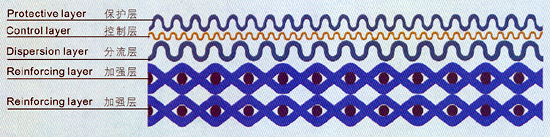

Combination of sintered metal wire mesh

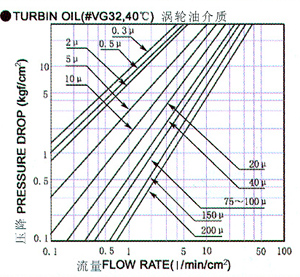

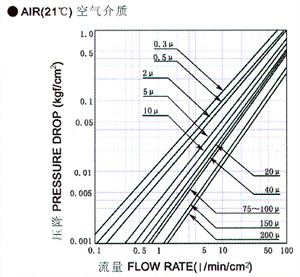

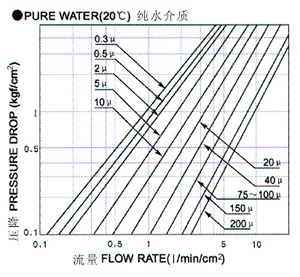

Curve of pressure drop-Flow rate
