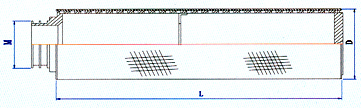

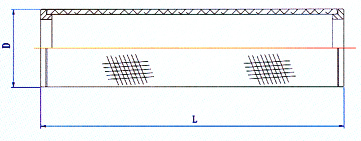

Cylindrical filter elements - Specification: table 3-4     Cylindrical filter elements Series: Filter Element Model: PF-D/L-R PF-Pleated Filter Elements D-Diameter L-Length R-Filter Rating     Model L(mm) D(mm) M Filter Area R(µm) Filter Media CF-50/250-R 250 50 Sealing ring or flange 0.038M2 2, 5, 10, 15, 20, 30, 40, 75 Stainless steel sintered wire cloth CF-50/500-R 500 0.078M2 CF-50/1000-R 1000 0.150M2 CF-60/500-R 500 60 0.094M2 CF-70/500-R 500 70 0.108M2 CF-75/500-R 500 75 0.115M2 CF-90/500-R 500 90 0.140M2 CF-150/500-R 500 150 0.230M2 Note: Inner support of filter elements can be stainless steel perforated tube or spring     Model L(mm) D(mm) M Filter Area R(µm) Filter Media CF-16/390-R 390 16 M16x1.5P M33x1.5P M33x2P M55x2P 0.02M2 2, 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber web; stainless steel weaving wire cloth; stainless steel sintered wire cloth CF-50/500-R 500 50 0.07M2 CF-63/750-R 750 63 0.15M2 CF-65/266-R 266 65 0.05M2 CF-70/500-R 500 70 0.10M2 CF-70/1000-R 1000 70 0.21M2       Pleated filter elements Introduction Structure Specification: table 1-3 Specification: table 4-6 Specification: table 7-9 Specification: table 10-12 Cylindrical filter elements Introduction Filter media Specification: table 1-2 Specification: table 3-4 Disc filters Introduction Specification Basket filters Introduction Filter cloth packs Introduction Others Air Fluid Plate Leaf Filter
