Pleated filter elements - Specification: table 1-3



Pleated Filter Elements Series:

  • Filter Element Model: PF-D/L-R
  • PF-Pleated Filter Elements
  • D-Diameter
  • L-Length
  • R-Filter Rating

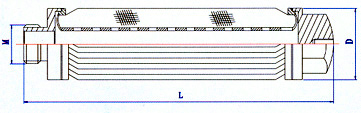

Model L(mm) D(mm) M Filter Area R(µm) Filter Media
PF-86/200-R 200 86 M65x2P 0.20M2

3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75

 Stainless steel sintered fiber web; stainless steel weaving wire cloth
PF-86/350-R 350 0.35M2
PF-86/500-R 500 0.50M2
PF-100/800-R 800 100 M80x2P 1.00M2

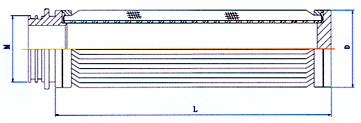

Model L(mm) D(mm) M Filter Area R(µm) Filter Media
PF-65/250-R 250 65 226
223
220
215 		0.135M2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber web; stainless steel weaving wire cloth
PF-65/3500-R 500 0.38M2
PF-70/750-R 750 70 0.42M2
PF-70/750-R 750 70 0.60M2

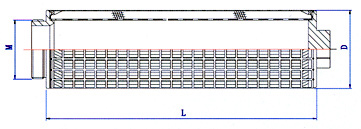

Model L(mm) D(mm) M Filter Area R(µm) Filter Media
PF-35/102-R 102 35 M18
M20x2.5
M20x1.5
NPT1"
3/4-16 		0.026M2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber web; stainless steel weaving wire cloth
PF-35/207-R 207 0.07M2
PF-35/210-R 210 0.07M2
PF-35/242-R 242 0.08M2
PF-35/425-R 425 0.15M2
PF-35/485-R 485 0.20M2
