Cylindrical filter elements - Specification: table 1-2

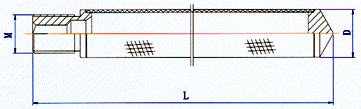

Cylindrical filter elements Series:

  • Filter Element Model: PF-D/L-R
  • PF-Pleated Filter Elements
  • D-Diameter
  • L-Length
  • R-Filter Rating


Model L(mm) D(mm) M Filter Area R(µm) Filter Media
CF-14/65-R 65 14 M10x1P
M14x1P
M14x1.5P
1/4"NPT 		0.002M2 2, 5, 10, 15, 20, 30, 40, 75
 Stainless steel sintered wire cloth
CF-14/250-R 250 0.01M2
CF-14/500-R 500 0.022M2
CF-14/1000-R 1000 0.044M2


Model L(mm) D(mm) M Filter Area R(µm) Filter Media
CF-25/250-R 250 25 M20x1.5P 0.019M2 2, 5, 10, 15, 20, 30, 40, 75 Stainless steel sintered wire cloth
CF-25/500-R 500 0.039M2
CF-25/1000-R 1000 0.078M2
CF-30/500-R 500 30 M20x2P
M20x2.5P
M28x2P 		0.046M2
CF-30/1000-R 1000 0.093M2
CF-30/1500-R 1500 0.140M2
